Problem:It does not work. Some accessories may be missing
PS：
We do not provide warranty
It cannot be shipped to the UK
free shipping：price include delivery fee
From Pswpower
Feature:
1.It's the newest version has two plugs for gear shift sensor and 6V light.
2.18amp upgraded IRFB3077 mosfets controller

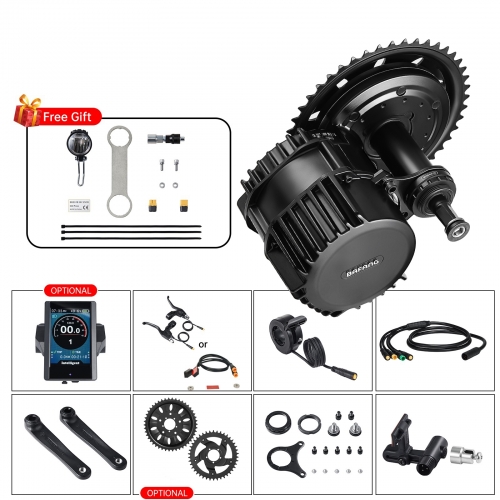

Bafang mid drive motor 18A controller (built into drive system) with upgraded 3077 mosfets Hot rod programmed for ultimate performance
Specification:
Core Data
Position: Mid Motor
Wheel Diameter(Inch):Optional
Construction: Gear drive
Nominal Voltage: 48V
Rated Power: 500w
RPM: 120-126
Max Torque: 100 N.m
Efficiency: 80%
PAS SENSOR: Speed sensor
Shaft Standard: JIS
Mounting Parameters
Weight: 4.3kg
Function
E-Brake:Yes
Gearsensor Function:Yes
Light Drive Capacity(DCV/W):6/3(max)
Further Specifications
Cadence (Pulses/Cycle):N/A
Reduction Ratio: 1:21.9
Magnet Poles:16
Noise: <55dB
Hall Sensor: optional
Connector: Waterproor
Tests & Certifications
IP-Code:IP 65
Cerifications: CE /UL / ROHS EN 14764
How to choose the brake lever or hydraulic brake sensor?
The kit will work with or without the brake sensors plugged in.
The Bafang kit does not come with brake sensors, you can select the brake levers option made for standard cable actuated brakes.
You also have the option of getting magnet sensors which allows you to adapt your existing brakes. This will help with users who have hydraulic brakes the sensors are not compatible with.
Payment:
The payment isn't included the remote fee. There will have extra cost if your address is belong to remote areas.
Return & Refund:
After receiving the item,buyer should start a return within 7 days.Return postage will be paid by buyer.The return items must be in original conditions never used.Buyer can not return to sender address,we will provide local return address to buyer.
Feedback:
Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stars feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you.
